    Airslide Conveyor Belt Transfer Fabric Cement Transfer Belt Powder Conveyor Airslide

    Ask Lasest Price
    Brand Name : 17S
    Model Number : 17SAIRSLIDE
    Price : 11-60USD/SQM
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 5000SQM/week
    Delivery Time : per production schedule
    • Product Details
    • Company Profile

    Airslide Conveyor Belt Transfer Fabric Cement Transfer Belt Powder Conveyor Airslide

    Airslide Conveyor Belt Transfer Fabric Cement Transfer Belt Powder Conveyor Airslide

    Conveyor Belt Transfer Belt Airslide
    Airslides are used for conveying bulk powder materials. Often used in power plants, mining and cement industries for dry powder such as carbon dust, cement, lime and fly ash. Also used in food processing for flour dust products.
    Airslide media is installed within an air slide conveyor system at an incline. The incline can be kept relatively small due to fluidizing air passing through the fabric, allowing dust to flow freely through the system. This method for transporting bulk materials maintains a high flow rate over long distances, whilst preserving efficiency and a low energy consumption.

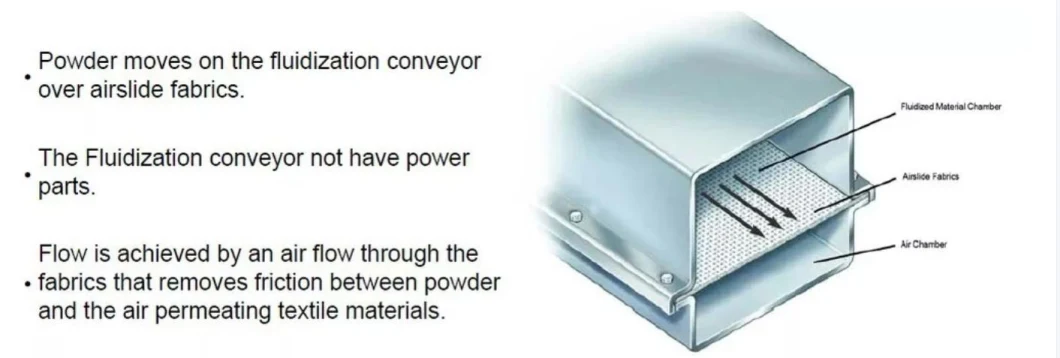

    Working principle

    An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.

    Conveyor Belt Transfer Belt Airslide
    Air gravity conveyors are some of the most efficient manners of conveying these bulk powders as it only requires a small amount of air and a slight incline to convey material for hundreds of feet. These systems do not have all the moving parts of a conveyor belt which makes them less expensive to operate.
    Air-slide materials work well in high temperature applications as well. We offer both woven and nonwoven medias that can withstand temperatures up to 500° F continuous and 600° F peak.


    Polyester Airslide Data Sheet
    Conveyor Belt Transfer Belt Airslide

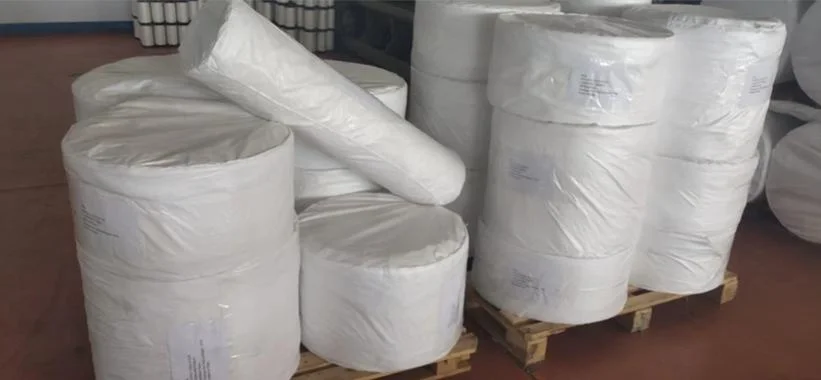

    Pack
    We provide all kinds of standard export packing for cargo protection. The bag filter will be fixed on the container. The filter bag and cages will be fixed in corrugated box and steel framed structure.
    Conveyor Belt Transfer Belt Airslide

    We promise
    - We will offer our best price.
    - Your inquiry will be replied within 24 hours.
    - Experienced staff can give you professional suggestions.
    - We ensure you high quality products and timely delivery.
    - We offer complete and good after-sale service.
