1. Specification
Cages are frameworks for bags, which is the bone of bags and
supports the bags running. Both bags and cages are the most
important element for bag houses. Star cages are special designed
and made for Star bags. Star Cages are welded by special supporting
rings (Spiders). We are specialized in Star Cages design, develop
and process. We have own stretch line, cut line, weld line, coating
line and check equipment. Providing a wide range of star filter
cages for bag house collector, which improve the performance,
efficiency and bottom line of the bag house dust collector and
flue.
Capacity: 500 per day (star filter cage only, ordinary dust cage excludes)
Star Cage Style: 8 and 10 and 12 pleats star cages
construction of Star cages
| Pleats | Vertical Wire QTY | Diameter of Wire | Spider | Top Cap | Bottom Cap |
| 8 | 16 | 4 / 3.5 | wire / pressing | optional | wire bent |
| 12 | 12 / 24 | 4 / 3 | pressing / wire | optional | weld bottom cap |
| 10 | 10 | 4 | wire | optional | wire bent |
Optional Material: carbon steel, galvanized wire, stainless steel

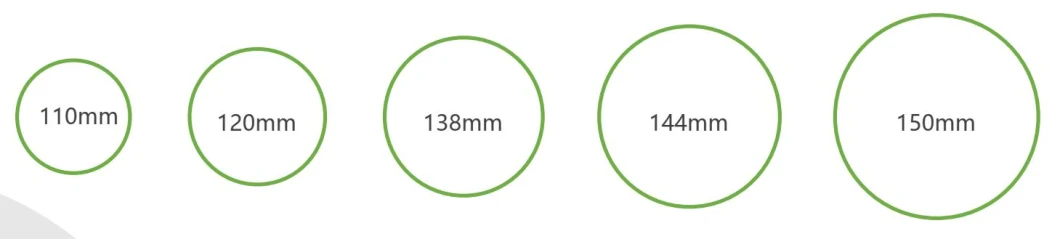

Star Cage Standard Diameter: star cage diameters are 110mm, 120mm, 138mm, 144mm, 150mm and
customized
Star Cage Finish Treatment: silicon coating, zinc coating, electrophoresis coating
Star cage Head: normal top cap, venturi top cap, split top (Mikropul) cap, wires
bent (hook) top, enlarged top ring etc
Star Cage Spider: we have different spiders for kinds of star cages
Star cage joint: if cages were too long or top space of bag house was not enough,
we suggest make cages in sections with joint like below
Pack
Our standard pack for cage is steel crate which is made of tube
steel and laid steel plate at the crate bottom. The crate width
does not excess 1140mm, so crate can be loaded in two pieces per
the width of container, and the height of crate is subjected to the
cage quantity and type of container. We seal the opening when cage
put in. This kind of crate design can well protect cage and endure
a long distance and time transportion.
2. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is
not like ordinary ones with tigh match. Star cages is a kind of
loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Pleats | Wire QTY | Diameter (mm) | Remark |
| cage | bag |
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for
diameter 110 and120mm |
| 120 | 130 |
| 138 | 150 |
| 144 | 155 |
| 150 | 160 |
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 |
| 138 | 150 |
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 |
| 138 | 150 |
| 144 | 155 |
| 150 | 160 |
3. Some Endusers
Our Star Cages are used worldwide, there are about our 400 thousand
star cages running everyday, such like Kitmat Smelter Modernization
Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa
Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA),
Nordural Century Aluminium (21 Century Aluminium, Iceland), Trimet
Aluminium SE (German) and so on.
