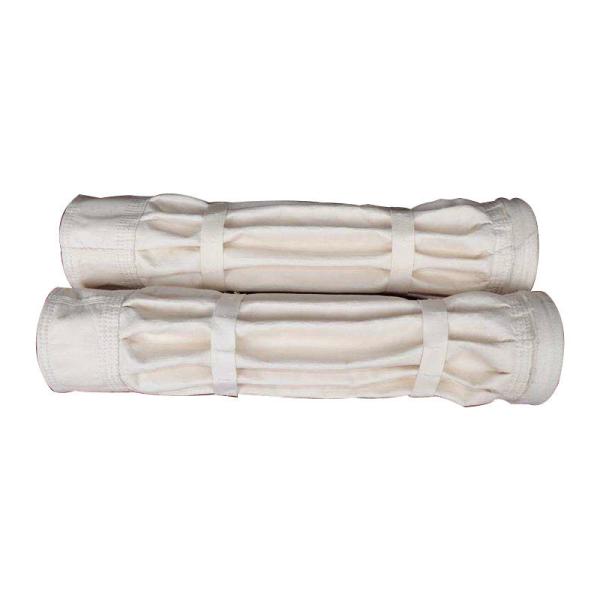

    P84 Industrial Metal Fabrication Pleated Air Cartridge Filter

    High Efficiency Industrial Metal Fabrication Pleated Bag Air Cartridge Filter Dust Collector Filter


    Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance. Pleated bag filters offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.


    1.The cartridge is made up of a certain length of stiff fabric folded into fold, fore and aft glue them into a star filter cartridges. The cartridge is cage bones and easy installation.
    2.The gap is big, big Angle between fold, fold and shallow, less filter area ratio of the same diameter and length of filter bag big 2-5 time.
    3.The soot cleaning easy and the effect is good, suitable for concentration of 15 g/m or more dust filter dust, filter the wind speed 0.6-1.2 m/min.
    Area of application:
    Sand blasting, polishing cleaning, spray paint of coating, metal smelting, cement, power plant, industrial dust filter.


    Datasheet

    Stylestar bag, pleat bag, expand filter surface/area bag
    Pleats No.8 pleats
    MaterialP84
    Diameter160mm
    LengthTBDmm
    Strap / bandTypecut felt strap
    afixingthread sewing to bag
    Width25mm
    Distance250mm
    TopOpening160mm
    CuffTypebead cuff
    Width25-30mm
    Thickness3-7mm
    Distance4-8mm
    Metal hoopinside of topyes
    material304 stainless steel
    width25-30mm
    Fixsew to bag body
    Boot / BottomDiameter160mm
    Height100-120mm
    Reinforcementtwo layers
    Bottom disctwo layers
    Metal hoopno, 20-25mm 304 stainless steel if yes
    Fixsew to bag body
    SeamTypethread sewing
    Bag panel/bodytriple rows sewing
    Cuff panel2 double rows sewing
    boot upper2 double rows sewing
    boot bottomdouble rows sewing
    PackPoly bag and pallet, or carton and pallet

    Filter area increasing

    The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

    Filter area increasing (%)

    filter surfaceDianmter mmBag Length
    1m2m3m4m5m6m
    8 pleats16073.5795.26102.49106.11108.28109.73


    How to make star bags
