    PTFE Lamination Needle Punched Polyester Felt 550gsm

    Ask Lasest Price
    Brand Name : 17s
    Model Number : 17SPETN550L
    Certification : ISO
    Price : negotiable
    Supply Ability : negotiable
    Delivery Time : TBD
    • Product Details
    • Company Profile

    PTFE Lamination Needle Punched Polyester Felt 550gsm

    Efficient 550g PET Needling Cloth With PTFE Lamination Polyester Punched Membrane Filter Bag Felt Widely Used


    Description

    Polyester is a resin formed by the esterification reaction of dicarboxylic acids with diols. Polyester is used in low temperature filtration and can be degraded in application where moisture is present. We choose cascaded blend of different fiber sizes with the finer fiber concentration in the filtration surface to make the product not only have the common felt’s advantage of high voidage, good air permeability, high dust collection efficiency, long service life, etc , but also have the advantage of the moderate temperature rating, can reach 150 at the moment, moderate effect of the anti-antacid and anti-alkali, and has very good abrasion resistance. According to the different requirements of the different working condition, surface treatment can be done as singeing, calendaring, oil and water proof, PTFE impregnation coating, PTFE lamination etc


    Features of needled felt PETN550L

    Item17SPETN550L
    NamePET needling cloth 550g with PTFE lamination
    ConstructionNeedle-punched
    Fibre CompositionPET fiber
    Scrim CompositionPET filament
    Felt Area Weight550 ±25g/m2
    Thickness2.2±0.2mm
    Air Permeability2-4m3/m2/min@200Pa
    Breaking Strength-warp≥1000N / 5cm
    Breaking Strength-weft≥1500N / 5cm
    Breaking Elongation( N/5cm)-warp≤30%
    Breaking Elongation( N/5cm)-wef≤50%
    Dry Shrinkage warp(150℃)<1.5%
    Dry Shrinkage weft(150℃)<1.0%
    Operating Temperatures
    Maximum Continuous130deg C
    Maximum Peak150deg C
    FinishHeat setting,Singing,Membrance

    Chemical Resistance

    HydrolysisBiological (mildew, bacteria)AlkalisMineral AcidsOrgnic AcidsOxidising AgentsOrgnic Solvents
    restrictno effectfairfairfairgoodgood

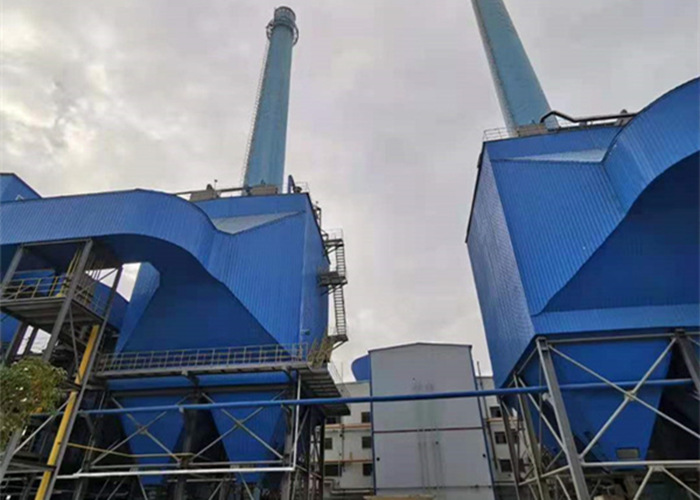

    Application
    Because of its favourable price/quality ratio, polyester is the most common fibre used in filter media.

    • Mining
    • Cement Industry
    • Iron and Steel Industry
    • Aluminum and Non Ferrous Industry
    • Ceramic Industry
    • Quarrying
    • Plastics
    • Milk Powder
    • Flour Mills (Applications under dry conditions up to temperatures of 150°C)
