    P84 High Temperature Needle Punch Filter Fabric 2.5mm

    Ask Lasest Price
    Brand Name : 17s
    Model Number : P84N550
    Certification : ISO
    Price : negotiable
    Supply Ability : negotiable
    Delivery Time : TBD
    • Product Details
    • Company Profile

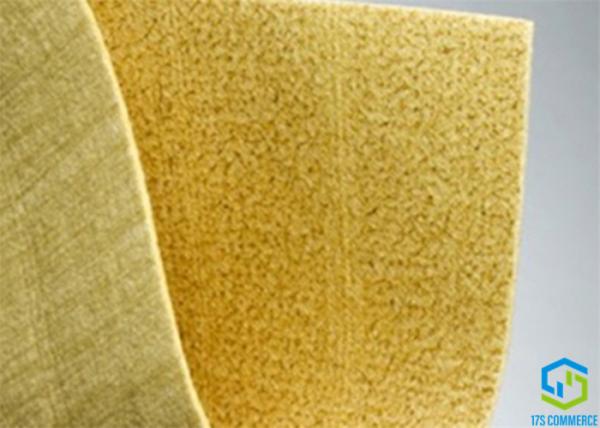

    P84 High Temperature Needle Punch Filter Fabric 2.5mm

    550g P84 High Temperature Needled Felt P84 Punched Filter Bag Fabric P84 High Efficient Felt


    P84 is fiber made by Degussa Inspec Fibres, and is a high temperature polyimide fibre. P84 can withstand up to 260 in dry heat conditions or 195 where high moisture is present. Unlike most other fibres, P84 has a trilobal cross section which makes its particle capture and filtration efficiency very high. In some industries P84 is used in the filtration surface of other filter media to improve the filtration efficiency. In the cement industry, P84 is the most commonly used fibre where the off gases from the kiln or clinker cooler are high.

    According to the different requirements of the different working conditions, we could do various functional processing on P84 fiber high-temperature resistance needled felt, such as water and oil repellent, PTFE impregnation, coating, lamination and so on.


    Features

    • Excellent steady under high temperature and resistance to acid
    • P84 can operate continuously, under practical and low acid working conditions, at temperatures up to 500°F(260 °C).
    • High filtration efficiency, high tensile strength.
    • The complex cross sectional shapes create 30-90% more collection surface area when compared to round or oval shaped fibers.
    • Low back washing pressure, maximun flexibility
    • The unique tri-lobal fiber structure of P84 provides customers with high efficiency filtration, low pressure drop, and reduced cleaning energy.
    • Excellent dust cake release
    • P84 has irregular, tri-lobal fibers that provide better collection efficiencies and enhanced dust cake release properties.


    Physical Parameter of Needling felt P84N550

    Item17SP84N550
    NameP84 needling felt 550g
    ConstructionNeedling
    CompositionP84 fiber
    ScrimP84
    Weight (g/m2)550
    Thickness (mm)2.5
    Air permeability (L/m2/s)12
    Tensile strength (N/5×20cm)Warp800
    Weft1300
    Tensile elongation (%)Warp<35
    Weft<55
    Broken strength (Mpa/min)2.4
    Working temperature (℃)≤ 260
    Short time working temperature (℃)280
    The stability of water solutionMedial
    Finishing treatmentHigh temperature hot pressing,Singeing


    Chemical Resistance

    HydrolysisBiological (mildew, bacteria)AlkalisMineral AcidsOrgnic AcidsOxidising AgentsOrgnic Solvents
    fairno effectfairvery goodvery goodvery goodexcellent

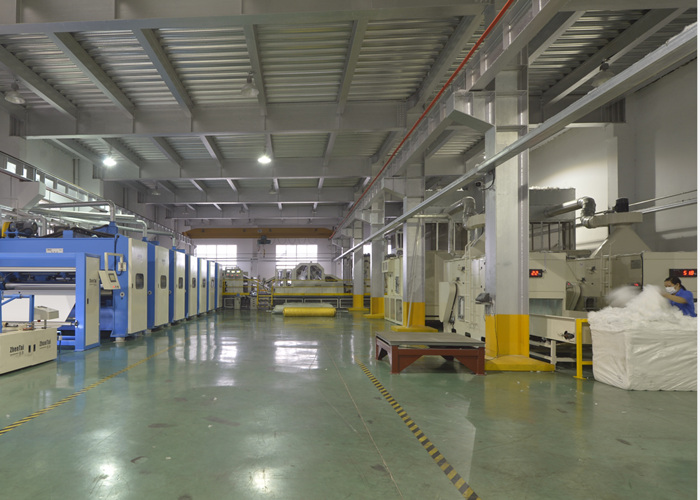

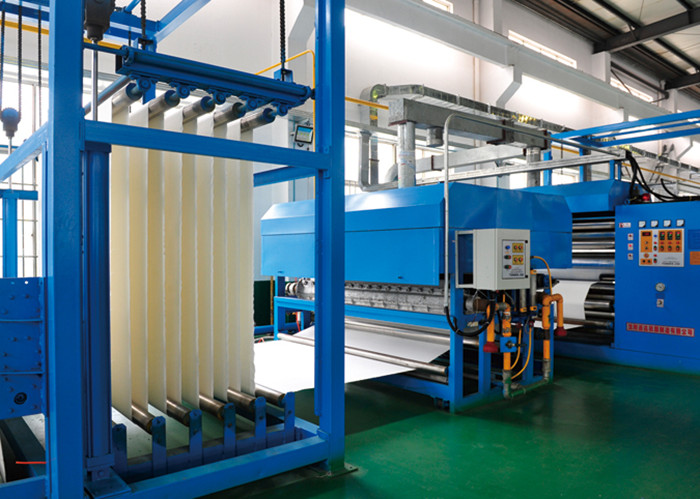

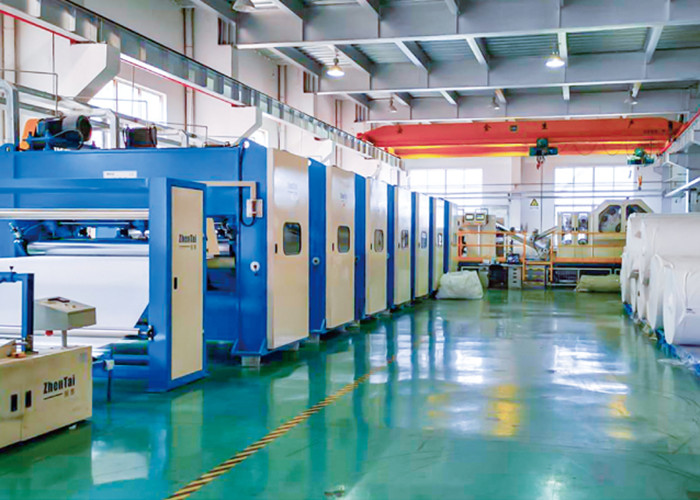

    Production Facilities
