    Bead Cuff 8 Pleats 160mm PTFE Filter Bag Extended Filter Area

    Ask Lasest Price
    Brand Name : 17s
    Model Number : 160mm Star / Pleat filter bag
    Certification : ISO
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : TBD
    Delivery Time : TBD
    • Product Details
    • Company Profile

    Bead Cuff 8 Pleats 160mm PTFE Filter Bag Extended Filter Area

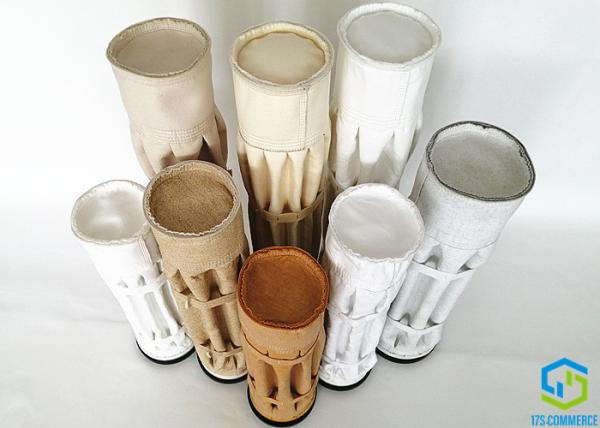

    PTFE Star Filter Bag Pleated Bag 160mm Extended Filter Area Cage Bag


    Property

    Star filter bag has a unique pleated design which can more than double the available fabric filtering area in the same space as traditional cylindrical and oval filter bags. It is designed to replace existing filter bags allowing significant increases in bag house capacity without major changes as the original cell plate and cleaning system can be retained.

    Pleated/star filter bags have received a considerable amount of attention due to their higher filtration area compared to that of cylindrical filter bags. They can be used to increase both the filtration efficiency and dust holding capacity, as it is possible to decrease the filtration velocity when using the same amount of exhaust gas. The effective filtration area of pleated/star filter bags increases up to 140% in pulse-jet bag house systems, comparing with those of a cylindrical filter bag.

    Stylestar bag, pleat bag, extend surface/area bag
    Pleats No.8 pleats
    MaterialPTFE
    Diameter160mm
    LengthTBDmm
    Strap / bandTypecut felt strap
    afixingthread sewing to bag
    Width25mm
    Distance250mm
    TopOpening160mm
    CuffTypebead cuff
    Width25-35mm
    Thickness4-8mm
    Distance4-8mm
    Metal hoopinside of topyes
    material304 stainless steel
    width25-30mm
    Fixsew to bag body
    Boot / BottomDiameter160mm
    Height100-120mm
    Reinforcementtwo layers
    Bottom disctwo layers
    Metal hoopno, 20-25mm 304 stainless steel if yes
    Fixsew to bag body
    SeamTypethread sewing
    Bag panel/bodytriple rows sewing
    Cuff panel2 double rows sewing
    boot upper2 double rows sewing
    boot bottomdouble rows sewing
    PackPoly bag and pallet, or carton and pallet

    Filter area increasing (%)

    The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

    filter surfaceDianmter mmBag Length
    1m2m3m4m5m6m
    8 pleats16073.5795.26102.49106.11108.28109.73

    So
    • longer bag service life

    • increase the air volume of existing dust collectors to increase production capacity

    • lower emission

    • reduce energy consuption

    • reduce operation cost

    • reduce pressure drop

    • lower pulse jet pressure and frequence

    • small bag house and building area

    • lower the filter velocity


    Product Flow
