P84 Filter Star Bag Pleated Bag 130mm Extend Filter Area Bag

Overview

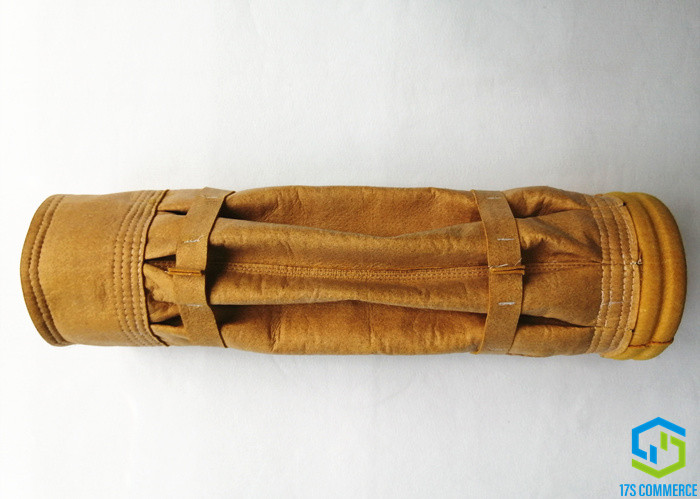

Star filter bags (Star bags) is named pleat bag, extend filter surface bag too. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. It is also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

Filter surface extended (%)

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

Filter area increasing (%)

So
• longer bag service life

• increase the air volume of existing dust collectors to increase production capacity

• lower emission

• reduce energy consuption

• reduce operation cost

• reduce pressure drop

• lower pulse jet pressure and frequence

• small bag house and building area

• lower the filter velocity

Applications of the filter bag in the bag house

• Asphalt – Durable construction required for abrasive, high temp environments. Hotmix or batch plants, whether natural gas, waste oil, fuel oil, etc.
• Cement – Filters for all areas of plant: kilns bag houses, silo bin vents, nuisance dust collection, etc. Our filters exceed all EPA emissions standards (NESHAP, CMAT, MACT for portland cement, PM2.5, etc.).
• Chemical – Filter fabrics for acidic or alkali compounds, corrosive or abrasive elements, etc. (lime, calc, fertilizer, plastics, etc.) – Special treatments and fabrics available. We can advise on the best combination for performance and cost.
• Food Processing – FDA approved food-grade fabrics construction available for dust collectors used in food production, transportation and packaging such as dust collectors on milling equipment, blenders, mixers, granulators, grain elevators, storage silos and more.
• Foundry and Metal Products – Filters for units used on arc/induction furnaces, casting operations, and precious metal reclamation. Fabrics and coatings for use in high temperature environments with need for high efficiency fume and smoke collection.
• Power Generation and Industrial Boilers – Our filters exceed new EPA emissions regulations for boilers and power generation (Mercury and Air Toxics, Boiler MACT, NESHAPs, etc.). We have much experience working with biomass and coal power production facilities to overcome technical challenges to meet new EPA regulations. Filter fabrics and treatments include PPS, P84, PTFE/Teflon (fabric), fiberglass, and ePTFE membrane.
• Wood, Sand and Minerals – Often requires filters with flame resistant coatings, or constructed from nonflammable materials.
