    Dust Filter Cages For Bag House and Dust collectors And Various Choices

    Dust Filter Cages For Bag House And Dust Collectors And Various Choices


    1. Specification

    Cages are frameworks for bags, which is the bone of bags and supports the bags running. Both bags and cages are the most important element for bag houses. Star Cages are welded by special supporting rings (Spiders). We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.


    Procedure of cage making

    1stretch linestreth 6 or 6.5 raw wire to roll diameters wires for cages, normally 3mm, 3.5mm and 4mm,
    2cut linecut roll wires to fixed length based on cage sizes
    3weld bodyweld vertical wires and suppoting ring together
    4weld top and bottom cap and venturiweld top and bottom cap to cage, venturi if necessary
    5coatingsilicon or zinc coating if necessary
    6inspect and fixinspect weld loose, burs, coating etc and fix
    7packput cages into steel crates

    Cage Style: round cages, oval cages and pleats star cages

    construction of cages

    styleVertical Wire QTYDiameter of WireSupporting RingTop CapBottom CapConnection
    round cage8-244 / 3.5 /3.2 /3wire, roundoptionalweld, crimp, wire benttwist lock, sure lock, finger lock
    oval cage10, 144wire, ovalovalweldslide lock
    star/ pleat cage8,10, 12, 164press, wireoptionalweld or wire bentglobal joint

    Optional Material: carbon steel, galvanized wire, stainless steel

    Cage Diameter: customized


    Star Cage Finish Treatment: silicon coating, zinc coating, electrophoresis coating

    Cage Head: normal top cap, venturi top cap, split top (Mikropul) cap, wires bent (hook) top, enlarged top ring etc


    Cage Connection: cages were too long or top space of bag house was not enough, we suggest make cages in sections with joint like below

    Pack of Cages

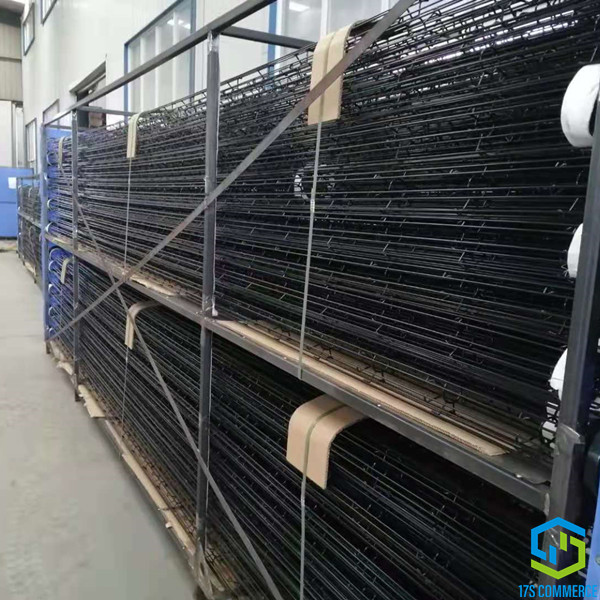

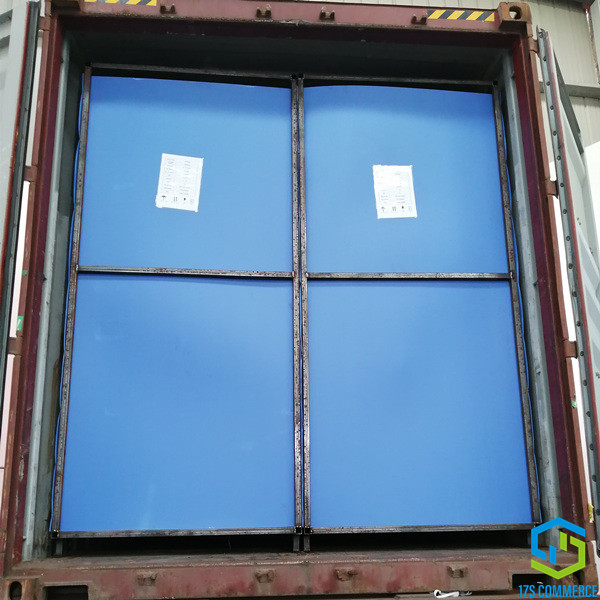

    Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.


    Shipping of cage

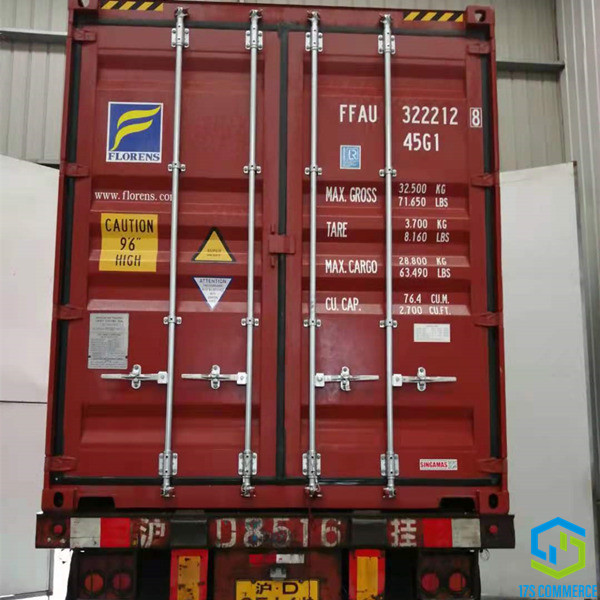

    Normally shipping by sea, we can ship by air if urgent needed. for samples shipping press is the best choice.
