    8 Pleat Dust Collector Filter Cage Acrylic Star Filter Cages

    Ask Lasest Price
    Brand Name : 17s
    Model Number : 8 pleat star cage
    Certification : ISO
    Price : negotiable
    Supply Ability : TBD
    Delivery Time : TBD
    MOQ : Negotiable
    • Product Details
    • Company Profile

    8 Pleat Dust Collector Filter Cage Acrylic Star Filter Cages

    8 Pleat Acrylic Star Filter Bag Cage Pleat Bag Cage Spider Cage Bag House Acrylic Star Bag Cage

    1. Specification
    Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

    2. Datasheet

    Stylestar cage / pleat cage / spider cage
    Pleats No.8 pleats
    MaterialQ235 mild steel / stainless steel / galvanized wire
    Diameter110, 120, 138, 144, 150mm
    Vertical WireNumber16pcs
    Thickness4mm
    SpiderTypewire
    Thickness4mm
    Distance150-250mm
    LengthTBDmm
    Structureone section / two sections
    Joining MethodNo
    Top CapTypeweld U shape top cap, various choices
    Sizebe up to cagemm
    Thickness1-1.2mm
    Fixweld to cage
    VenturiSizenomm
    Thickness1mm
    Fixweld to top cap
    Bottom CapTypewire bent inworder
    Size110,120,138,144,150mm
    Thicknessnomm
    Fixno
    FinishingTypesilicon coating
    Thickness90-140um
    Colorblack
    Packsteel crate

    3. Advantage

    The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

    Filter area increasing (%)

    filter surfaceDianmter mmBag Length
    1m2m3m4m5m6m
    8 pleats12038.6455.9761.7564.6466.3767.52
    13042.0959.8565.7768.7370.5071.69
    15054.0673.3179.7382.9484.8786.15
    16073.5795.26102.49106.11108.28109.73

    So
    • longer bag service life

    • increase the air volume of existing dust collectors to increase production capacity

    • lower emission

    • reduce energy consuption

    • reduce operation cost

    • reduce pressure drop

    • lower pulse jet pressure and frequence

    • small bag house and building area

    • lower the filter velocity

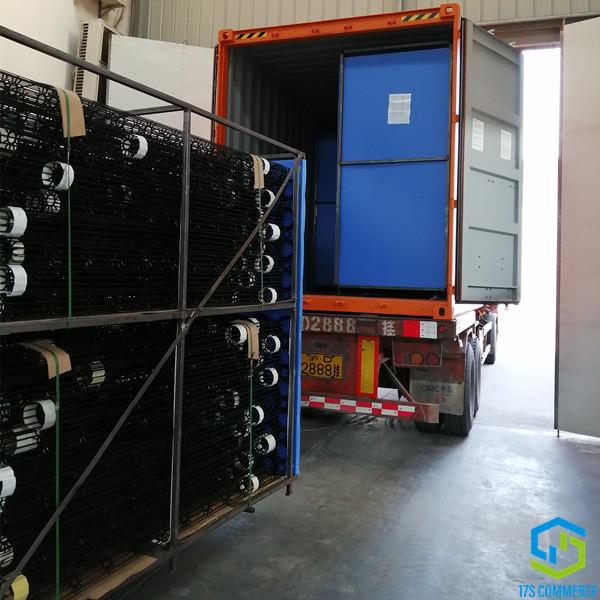

    4. Pack of Cages

    Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.
