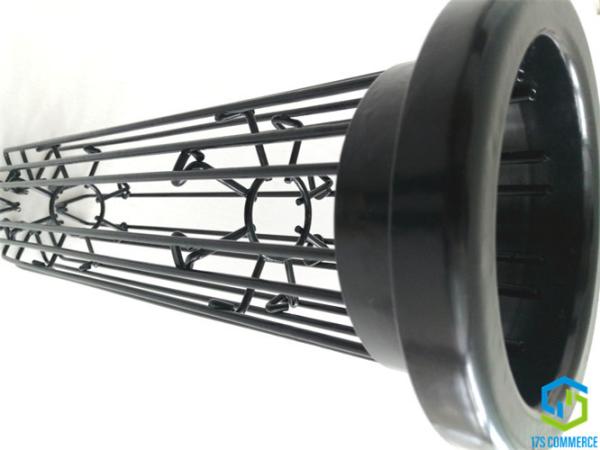

48 Pleat Polyester Star Filter Bag Cage Pleat Bag Cage Spider Cage
Bag House PE Star Bag Cage
1. Specification
Star cage, also names pleat cage, spider cage, is the bone and
framework of bag, supporting the bag running, is special designed
and made for star bag. Star Cages are welded by special supporting
rings (Spiders). We are specialized in Star Cages design, develop
and process. We have own stretch line, cut line, weld line, coating
line and check equipment. Providing a wide range of star filter
cages for bag house collector, which improve the performance,
efficiency and bottom line of the bag house dust collector and
flue.
2. Datasheet
| Style | star cage / pleat cage / spider cage |
| Pleats No. | 8 pleats |
| Material | Q235 mild steel |
| Diameter | 110, 120, 138, 144, 150 | mm |
| Vertical Wire | Number | 16 | pcs |
| Thickness | 4 | mm |
| Spider | Type | wire |  |
| Thickness | 4 | mm |
| Distance | 150-250 | mm |
| Length | TBD | mm |
| Structure | one section / two sections |
| Joining Method | No |
| Top Cap | Type | weld U shape top cap, various choices |
| Size | be up to cage | mm |
| Thickness | 1-1.2 | mm |
| Fix | weld to cage |
| Venturi | Size | no | mm |
| Thickness | 1 | mm |
| Fix | weld to top cap | |
| Bottom Cap | Type | wire bent inworder |
| Size | 120 | mm |
| Thickness | no | mm |
| Fix | no |
| Finishing | Type | silicon coating |
| Thickness | 90-140 | um |
| Color | black |
| Pack | steel crate |
3. Advantage
The Star filter bags extend the filter surface, the increaing
filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length |
| 1m | 2m | 3m | 4m | 5m | 6m |
| 8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
| 130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 |
| 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 |
| 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 |
| 12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
| 130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 |
| 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 |
So
• longer bag service life
• increase the air volume of existing dust collectors to increase
production capacity
• lower emission
• reduce energy consuption
• reduce operation cost
• reduce pressure drop
• lower pulse jet pressure and frequence
• small bag house and building area
• lower the filter velocity
4. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is
not like ordinary ones with tigh match. Star cages is a kind of
loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Cage Pleats | Wire QTY | Diameter (mm) | Remark |
| cage | bag |
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for
diameter 110 and120mm |
| 120 | 130 |
| 138 | 150 |
| 144 | 155 |
| 150 | 160 |
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 |
| 138 | 150 |
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 |
| 138 | 150 |
| 144 | 155 |
| 150 | 160 |
5. Some Endusers
Our Star Cages are used worldwide, there are about our 400 thousand
star cages running everyday, such like Kitmat Smelter Modernization
Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa
Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA),
Nordural Century Aluminium (Iceland), Trimet Aluminium SE (German)
and so on.
