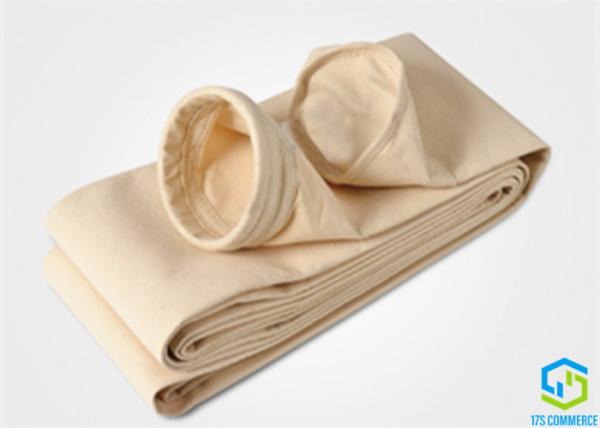

Round PPS Dust Filter Bag Bag House PPS Bag Dust Collector PPS Felt
Bag
1. Specification
PPS(polyphenylene sulphide) polymer is formed by reaction of
sulphur with dichlorobenzene. PPS has both high temperature
resistance (190℃) as well excellent acid and alkali resistance, although it can be
degraded in highly oxidative environments. PPS fiber needle felt is
made of imported PPS fiber which produced by Japan, it is the
leading varieties of the high temperature fiber material, PPS
filter bag perform excellent in the application of the following
situations.
1) The working temperature is up to 190℃,short term working temperature 210℃, the melting point of 285℃, the limit oxygen index 34-35
2) The oxygen content with 10% or below can be used
3) The place of flue gas containing moisture
PPS has the strength to keep the integrity and intrinsic chemical
resistance, can maintain a good performance in the bad
environments, and achieve the ideal life. PPS bag is the ideal
material of filter coal boiler, incinerator ash, dust processing
and others pulse dust collectors.
Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil
Repellent, PTFE Membrane, PTFE Impregnation and so on
Bag Size: it is up to the CPO and installation and customized

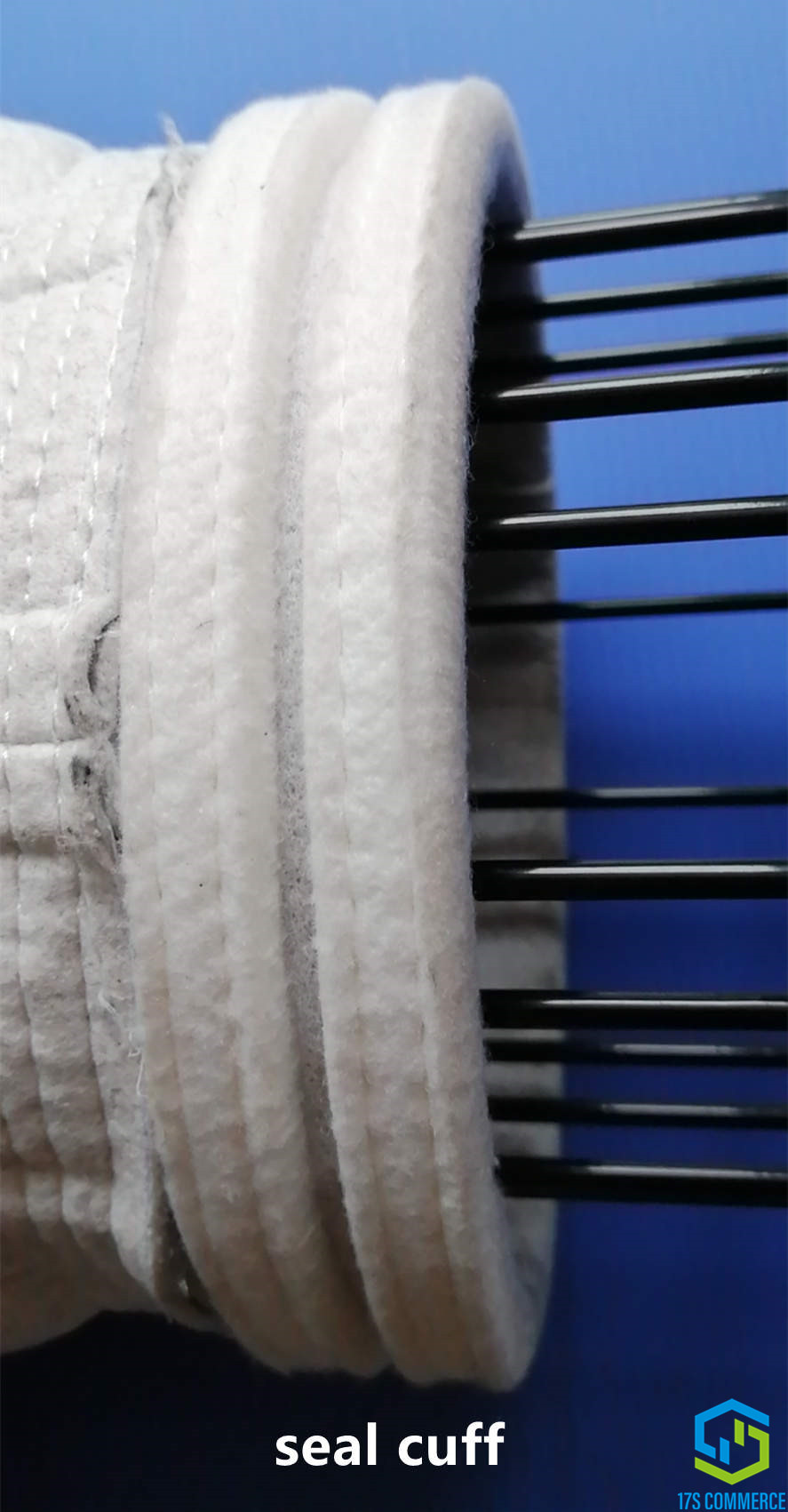

Bag Head: seal cuff / groove snap / felt strip, bead cuff/ steel strip, etc
can be chosen
Bag Body: Sewing or Hot sealing
Bag Bottom: Single or double bottom, with reinforcement or without
reinforcement
Construction of Round Filter Bags
| Style | Size | Felt/ Fabric | Body | Head | Bottom Layer | Reinforcement |
| Round | Customized | Various | Sewing or Hot Sealing | Seal Cuff, Bead Cuff | Single Or Double | With Or Without |
2. Parameters of PPS Filter Bags
| Bag | PPS Filter Bag |
| Felt | PPS Needled Felt |
| Scrim | PPS |
| Weight | gsm | 500-600 |
| Permeability | cfm | 25-35,PTFE lamination 3-7 |
| Tensile Strength | Warp | ≥N | 900 |
| Weft | ≥N | 1100 |
| Break Elongation | Warp | < % | 35 |
| Weft | < % | 50 |
| Working Temperature | Continuous | Dry | ℃ | 190 |
| Moist | ℃ | 190 |
| Short term | ℃ | 232 |
| Dry Shrinkage | Warp | <% | 1.5 |
| Weft | <% | 1.5 |
| Specific Density | 1.38 |
| Support Combustion | no |
| Resistance | Hydrolysis | poor |
| Biological (mildew, bacteria) | no effect |
| Alkalis | excellent |
| Mineral Acids | excellent |
| Orgnic Acids | excellent |
| Oxidising Agents | fair |
| Orgnic Solvents | excellent |
| Finishing | singeing, calendaring, oil and water proof, PTFE impregnation
coating, PTFE lamination etc |
|
3. Why Choose Us / Our Adcantage
1) over ten years experience in this field
2) very strict quality control management
3) perfect feed back from customers about quality,service,shipping
etc
4) we have own factory, easy control of quality, leadtime,
workmanship and IP protection
5) many big and famous customers buy our products consistently
6) strong R&D team, design and develop and product ability
7) QC and QA inspection before shipping
8) 100% products exported, know customers’ requires
9) Zero complain and claim of our products till now
