    138mm 144mm PPS Star Filter Cages Baghouse Cages

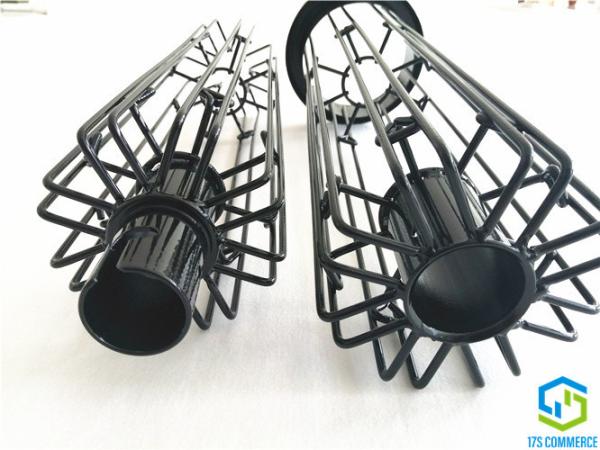

    8 Pleat PPS Star Filter Bag Cage Pleat Bag Cage Spider Cage Bag House PPS Star Bag Cage

    1. Specification
    Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

    2. Datasheet

    Stylestar cage / pleat cage / spider cage
    Pleats No.8 pleats
    MaterialQ235 mild steel,stainless steel,galvanized wire
    Diameter110, 120, 138, 144, 150mm
    Vertical WireNumber16pcs
    Thickness4mm
    SpiderTypewire
    Thickness4mm
    Distance150-250mm
    LengthTBDmm
    Structureone section / two sections
    Joining MethodNo
    Top CapTypeweld U shape top cap, various choices
    Sizebe up to cagemm
    Thickness1-1.2mm
    Fixweld to cage
    VenturiSizenomm
    Thickness1mm
    Fixweld to top cap
    Bottom CapTypewire bent inworder
    Size120mm
    Thicknessnomm
    Fixno
    FinishingTypesilicon coating
    Thickness90-140um
    Colorblack
    Packsteel crate

    3. Advantage

    The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

    Filter area increasing (%)

    filter surfaceDianmter mmBag Length
    1m2m3m4m5m6m
    8 pleats12038.6455.9761.7564.6466.3767.52
    13042.0959.8565.7768.7370.5071.69
    15054.0673.3179.7382.9484.8786.15
    16073.5795.26102.49106.11108.28109.73
    12 pleats12070.9192.2899.40102.96105.10106.52
    13074.8296.67103.95107.59109.78111.24
    15072.2393.76100.93104.52106.68108.11

    So
    • longer bag service life

    • increase the air volume of existing dust collectors to increase production capacity

    • lower emission

    • reduce energy consuption

    • reduce operation cost

    • reduce pressure drop

    • lower pulse jet pressure and frequence

    • small bag house and building area

    • lower the filter velocity


    4. construction of Star cages

    PleatsVertical Wire QTYDiameter of WireSpiderTop CapBottom Cap
    8164 / 3.5wire / pressingoptionalwire bent
    1212 / 244 / 3pressing / wireoptionalweld bottom cap
    10104wireoptionalwire bent

    5. The Match of Star bags and Cages

    Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.

    Match Of Star Bags and Star Cages

    Cage PleatsWire QTYDiameter (mm)Remark
    cagebag
    8 pleats161101203.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm
    120130
    138150
    144155
    150160
    12 pleats121101204mm vertical wires
    120130
    138150
    10 pleats101101204mm vertical wires
    120130
    138150
    144155
    150160

    6. Pack of Cages

    Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.
