    Round Acrylic Filter Bags Bag House PE Conventional Bag

    Round Acrylic Dust Filter Bag Bag House PE Conventional Bag Acrylic Felt Filter Bag Dust Collector Acrylic Bag​

    1. Specification

    Acrylic, typically used as homopolymer acrylic, is made by the polymerization of acrylate monomers to produce greater than 97% polyacrylonitrile. Acrylic can withstand slightly higher temperature than polyester, it is not degraded by moisture, and is more resistant to acids than polyester. When the temperature below 125, acrylic have good resistance to the organic solvents, oxidizing agent, inorganic and organic acid. Homopolymer acrylic is difficult to hydrolyze, so it can replace the polyester in the low temperature, the chemical existing and high humidity place.

    Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on

    Bag Size: it is up to the CPO and installation and customized
    Bag Head: seal cuff / groove snap / felt strip, bead cuff/ steel strip, etc can be chosen
    Bag Body: Sewing or Hot sealing
    Bag Bottom: Single or double bottom, with reinforcement or without reinforcement
    Construction of Filter Bags

    StyleSizeFelt/ FabricBodyHeadBottom LayerReinforcement
    RoundCustomizedVariousSewing or Hot SealingSeal Cuff, Bead CuffSingle Or DoubleWith Or Without

    2. Parameters of Acrylic Filter Bags

    BagAcylic Filter Bag
    FeltAcylic Needled Felt
    ScrimAcylic
    Weightgsm550-600
    Permeabilitycfm25-35,PTFE lamination 3-7
    Tensile StrengthWarpN700
    WeftN700
    Break ElongationWarp< %20
    Weft< %50
    Working TemperatureContinuousDry135
    Moist125
    Short term150
    Dry ShrinkageWarp<%1.5
    Weft<%1.5
    Specific Density1.17
    Support Combustionyes
    ResistanceHydrolysisvery good
    Biological (mildew, bacteria)very good
    Alkalisfair
    Mineral Acidsvery good
    Orgnic Acidsexcellent
    Oxidising Agentsgood
    Orgnic Solventsvery good
    Finishingsingeing, calendaring, oil and water proof, PTFE impregnation coating, PTFE lamination etc

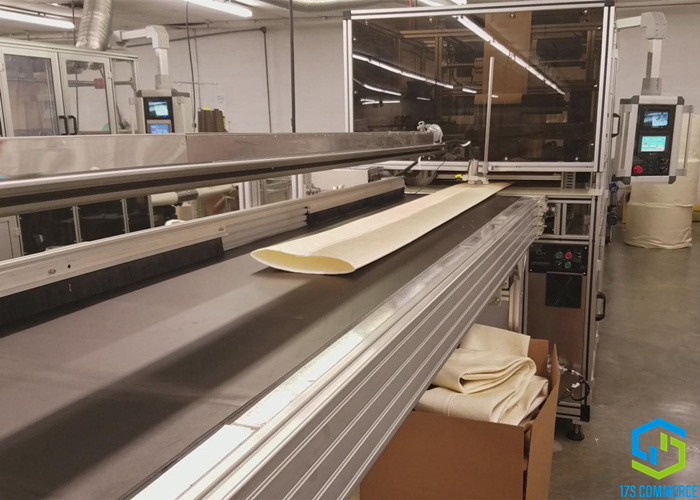

    3. Product flow
