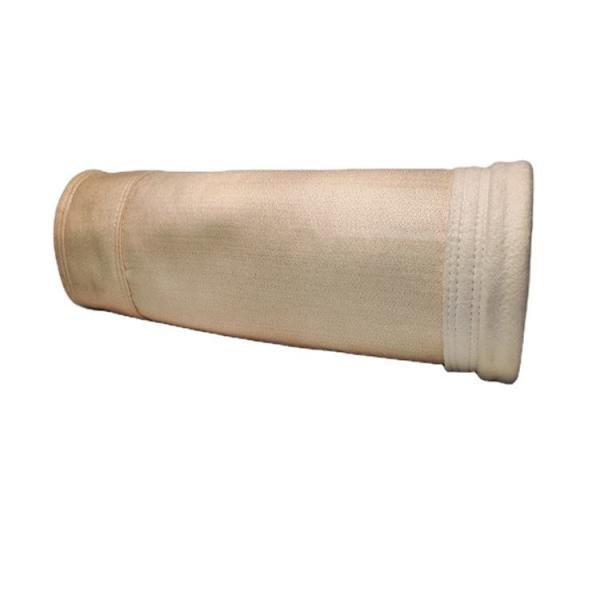

    Polyester P84 PPS Fiberglass Dust Collector Filter Bags Nomex Aramid Filter Bags

    Ask Lasest Price
    Brand Name : 17s
    Model Number : star bag
    Certification : ISO
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : TBD
    Delivery Time : TBD
    • Product Details
    • Company Profile

    Polyester P84 PPS Fiberglass Dust Collector Filter Bags Nomex Aramid Filter Bags

    Polyester P84 Pps Fiberglass Dust Collector Bags Nomex Aramid Filter Socks


    Feature

    Star filter bags (Star bags) is named pleat bag, extend filter surface bag too, a special design to extend the filter surface. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. It is also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

    Stylestar bag, pleat bag, extend surface/area bag
    Pleats No.8 / 12 pleats
    MaterialArcylic
    Diameter130mm
    LengthTBDmm
    Strap / bandTypecut felt strap
    afixingthread sewing to bag
    Width25mm
    Distance250mm
    TopOpening120mm
    CuffTypeseal cuff
    Width10-12mm
    Thickness8-10mm
    Distance4-8mm
    Metal hoopinside of topyes
    material304 stainless steel
    width25-30mm
    Fixsew to bag body
    Boot / BottomDiameter130mm
    Height100-120mm
    Reinforcementtwo layers
    Bottom disctwo layers
    Metal hoopno, 20-25mm 304 stainless steel if yes
    Fixsew to bag body
    SeamTypethread sewing
    Bag panel/bodytriple rows sewing
    Cuff panel2 double rows sewing
    boot upper2 double rows sewing
    boot bottomdouble rows sewing
    PackPoly bag and pallet, or carton and pallet

    Advantage

    The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

    Filter area increasing (%)

    filter surfaceDianmter mmBag Length
    1m2m3m4m5m6m
    8 pleats12038.6455.9761.7564.6466.3767.52
    13042.0959.8565.7768.7370.5071.69
    15054.0673.3179.7382.9484.8786.15
    16073.5795.26102.49106.11108.28109.73
    12 pleats12070.9192.2899.40102.96105.10106.52
    13074.8296.67103.95107.59109.78111.24
    15072.2393.76100.93104.52106.68108.11

    So
    • longer bag service life

    • increase the air volume of existing dust collectors to increase production capacity

    • lower emission

    • reduce energy consuption

    • reduce operation cost

    • reduce pressure drop

    • lower pulse jet pressure and frequence

    • small bag house and building area

    • lower the filter velocity


    The Match of Star bags and Cages

    Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.

    Match Of Star Bags and Star Cages

    Cage PleatsWire QTYDiameter (mm)Remark
    cagebag
    8 pleats161101203.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm
    120130
    138150
    144155
    150160
    12 pleats121101204mm vertical wires
    120130
    138150
    10 pleats101101204mm vertical wires
    120130
    138150
    144155
    150160

    Application

    PlantStar Bag and CageApplication
    Aluminium PlantPEelectrolysis fume
    PPSaluminum hydroxide calcination
    Cement PlantPEcement mill, crushing macine, leather belt etc
    PE with antistaticcoal mill
    P84kiln back end
    Meta aramidkiln head
    Power SationPPSboiler tail gas
    Steel PlantPEcasting house, ore bunker, sintering machine end, finished product transportation
    Acrylicslag differential
    Meta aramidrotary furnace
    PPS/Acrylicsintering machine head
    Chemical PlantPTFE , Meta aramidhigh temperature and corrosive confition
    Nonferrous Metal Smelt PlantP84aluminum metlting, copper furnace, gold smelt etc
    Carbon Black PlantPE, PE with PTFE laminationgrinder machine
    Glass PlantPTFE, PTFE composited P84 bag
